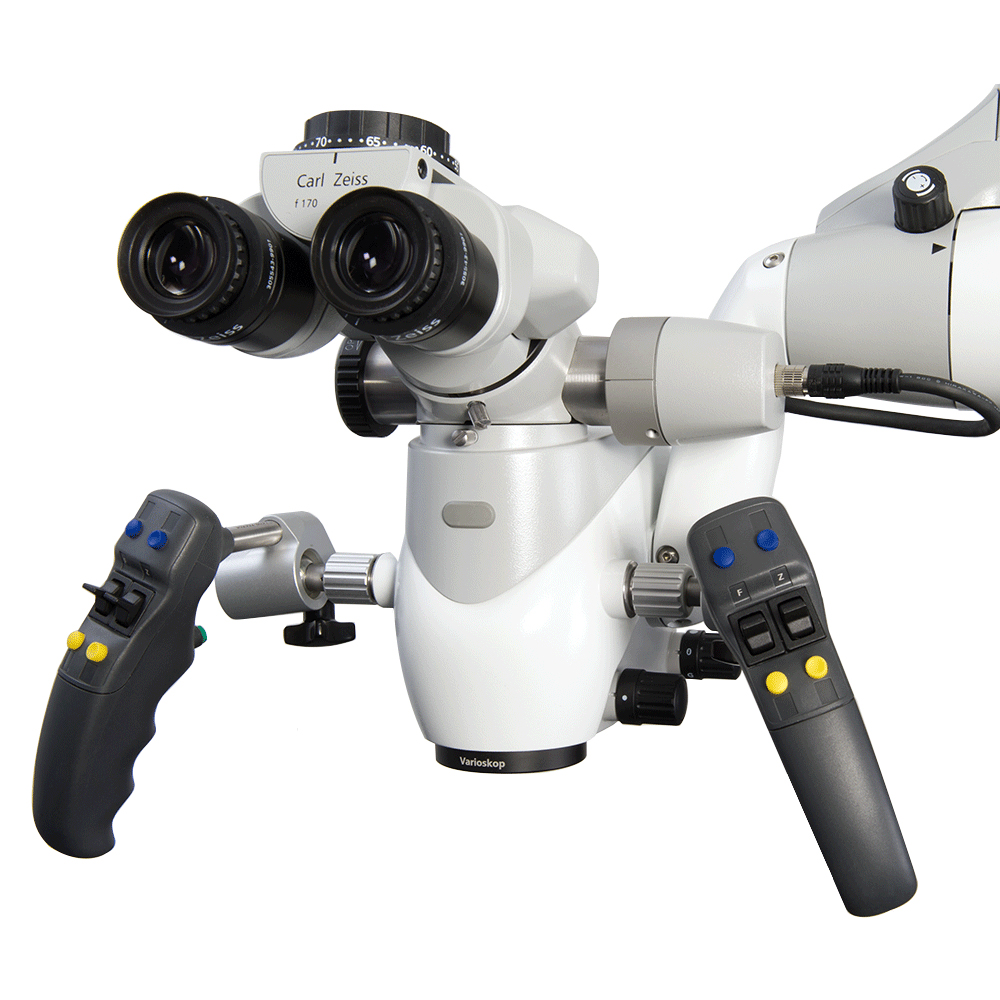

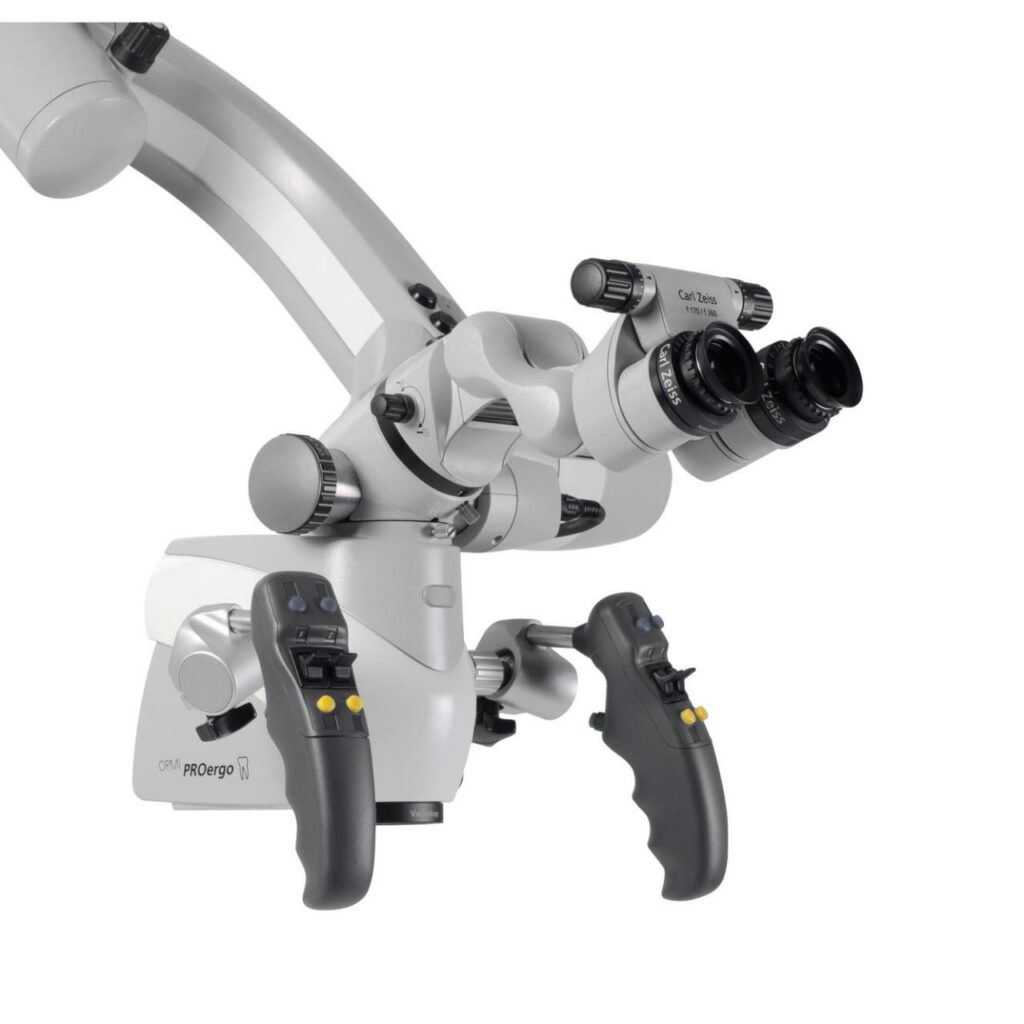

ZEISS OPMI PROergo
Comfort and Precision for Microdentistry
The OPMI PROergo® from ZEISS is a dental surgical microscope par excellence. It offers a variety of practical, motorized functions that promote easy handling and mechanical stability. The system, which allows for virtually free-surface movement, provides smooth, precise movement in a stylish and elegant design.
Using the ZEISS OPMI PROergo during treatment helps to ensure a comfortable working position. Its ergonomic design helps to prevent back and neck pain.
- Optics and Lighting
- Comfort and Usage
- Positioning
- Digital Visualization
See More – Treat More
ZEISS OPMI PROergo enables you to see areas that are otherwise difficult to see. Coaxial illumination directs the light to the required areas. Even very narrow root canals are effectively illuminated and visualized.
Ease of Use
The compact design of the ZEISS OPMI Sensera makes it easy to transport between operating rooms and reposition during surgery. The ZEISS OPMI Sensera can be moved with extreme precision and is the ideal surgical microscope for laser microsurgery.
Comfort and Ease of Use – For Your Own Health
Sit in a comfortable, upright, ergonomic position during treatment, so you can have a more comfortable working day. ZEISS OPMI PROergo helps prevent premature fatigue and neck and back problems.
Balance and Brake – Effortless and Precise Positioning
By opening the magnetic grips on the glove, you can easily maneuver the ZEISS OPMI PROergo into the desired working position – even if additional accessories, such as the observation tube and SLR camera with photo adapter are connected at the same time.
- Free Floating Magnetic System to maneuver the ZEISS OPMI PROergo effortlessly.
- The system can balance accessory weights of up to 14 kg.
Digital Visualization – For Greater Clarity
A picture is worth a thousand words: Patients demand detailed information that will help them understand the examination, treatment processes and expected results. Clear images and videos are invaluable to increase your patients' understanding and acceptance:
- HD Video Camera
- Digital HD Video Recorder: To record high quality videos and photos
- Digital Photography Adapter
Options and accessories

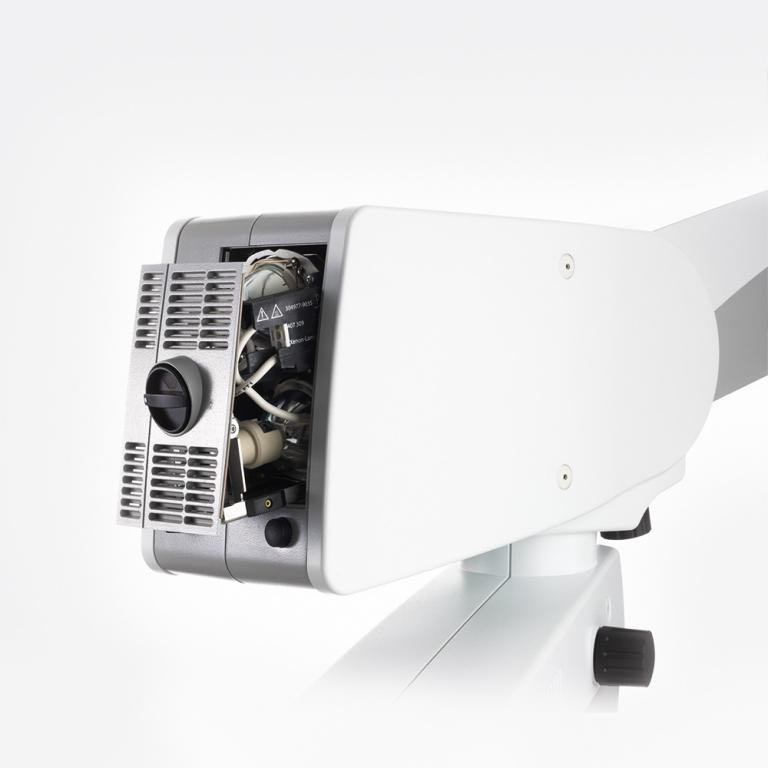

Xenon lighting

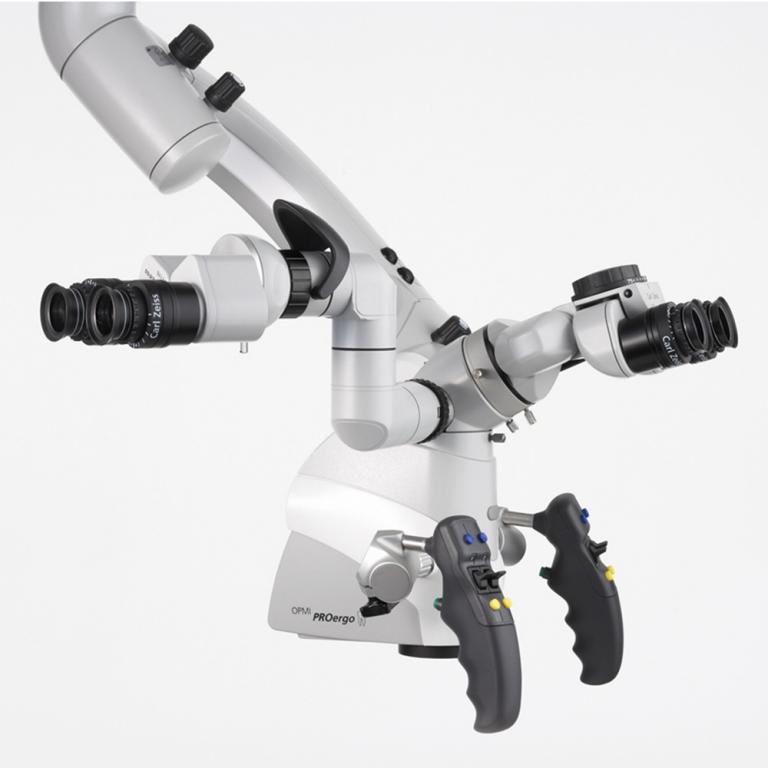

Stereo co-observation tube

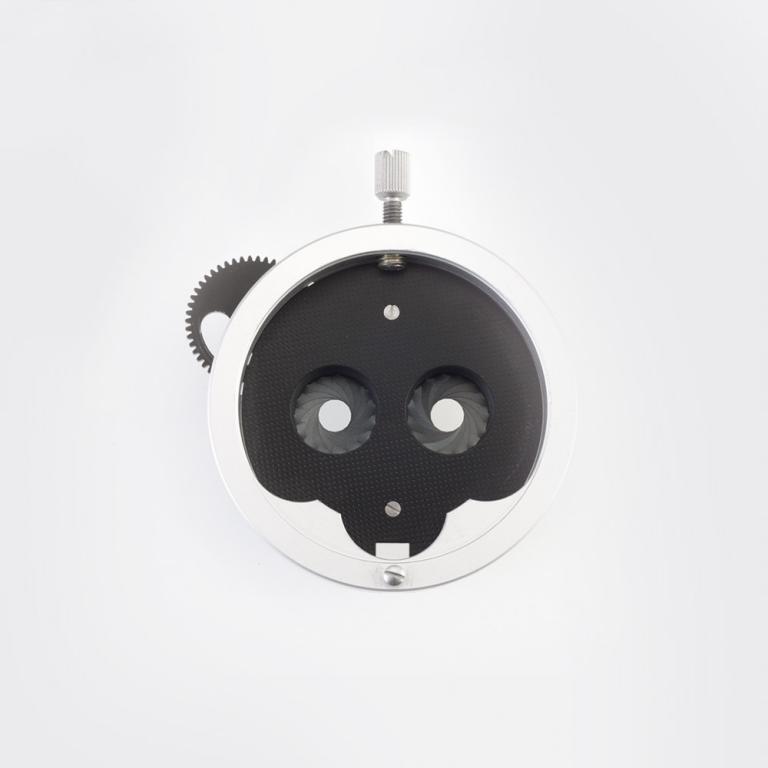

Dual iris diaphragm

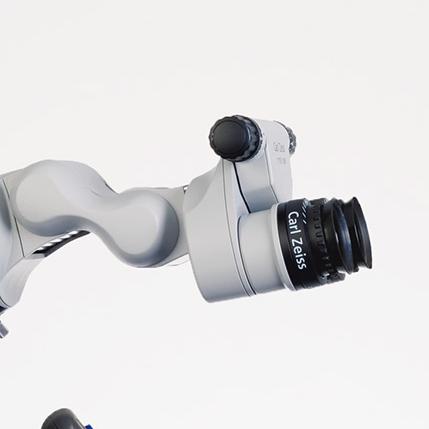

Foldable Tube f170/f260

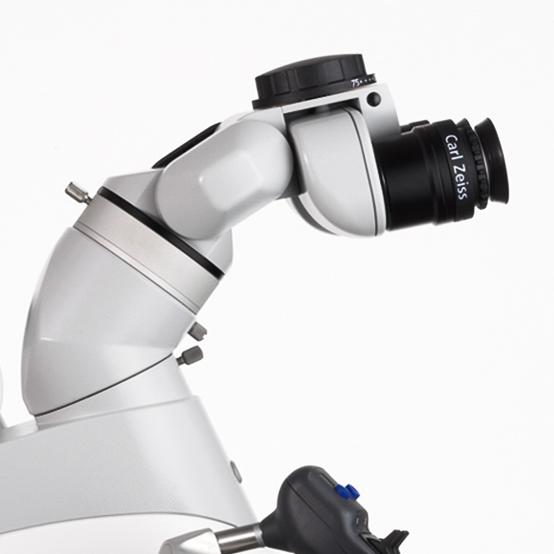

Angled optic and tube thread

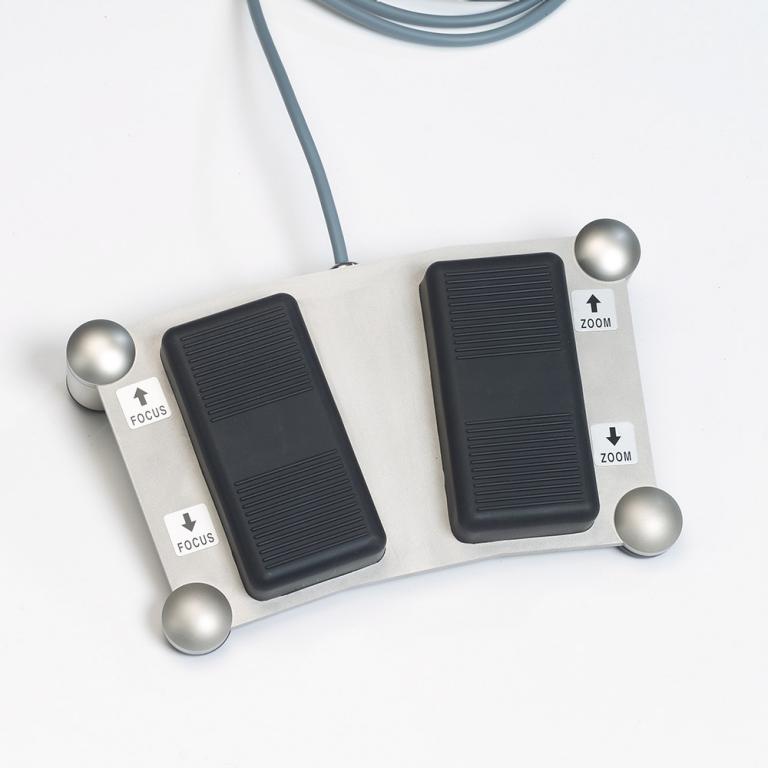

Foot control panel
SpeedFocus autofocus function

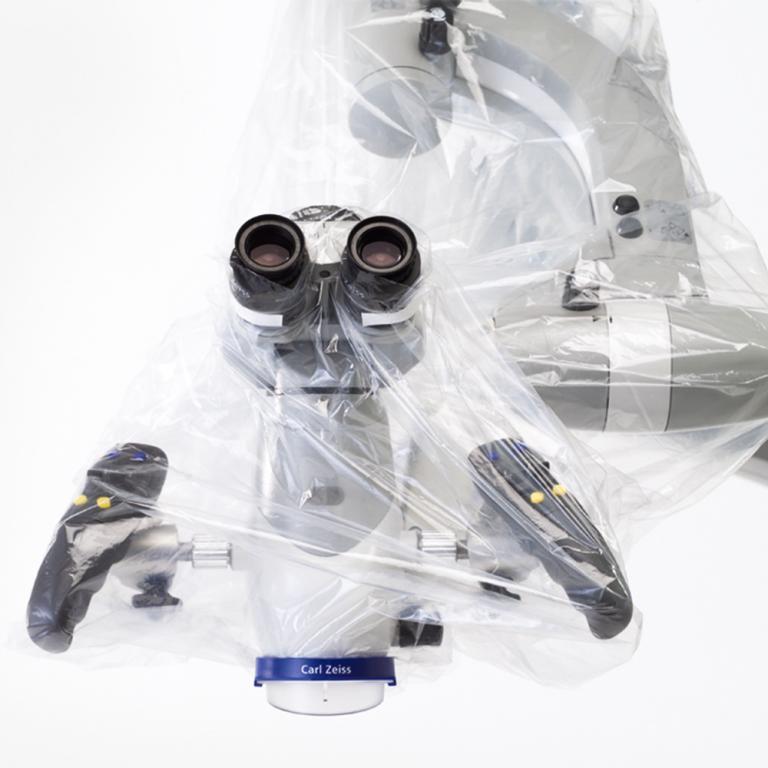

VisionGuard cover

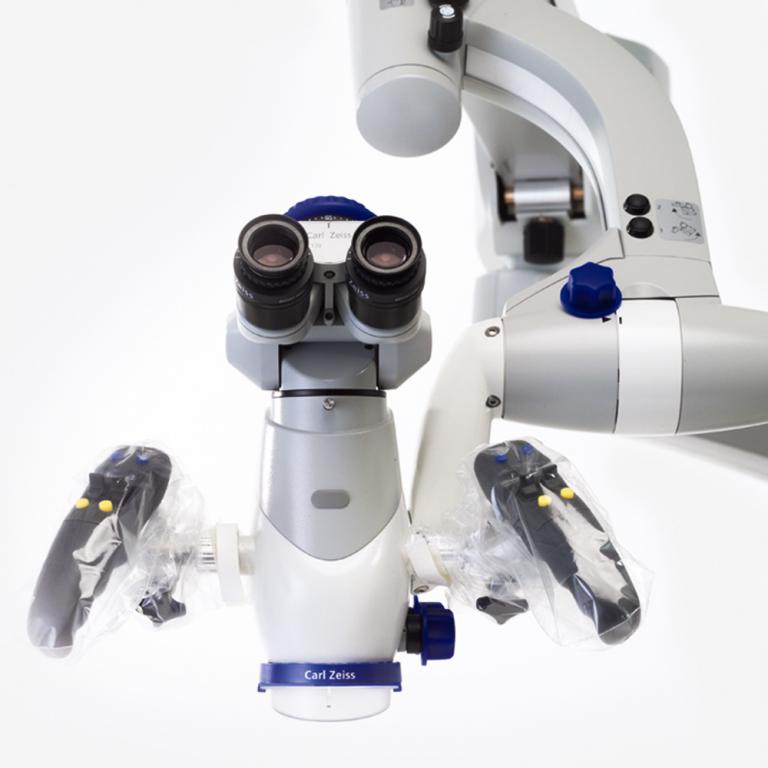

Sterilizable caps and handle covers

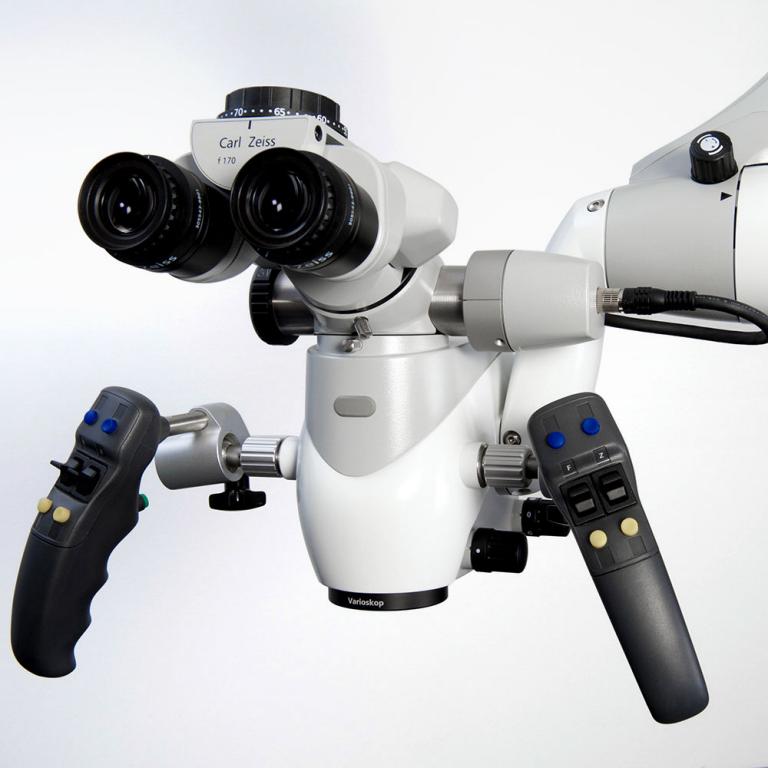

1Chip HD Camera

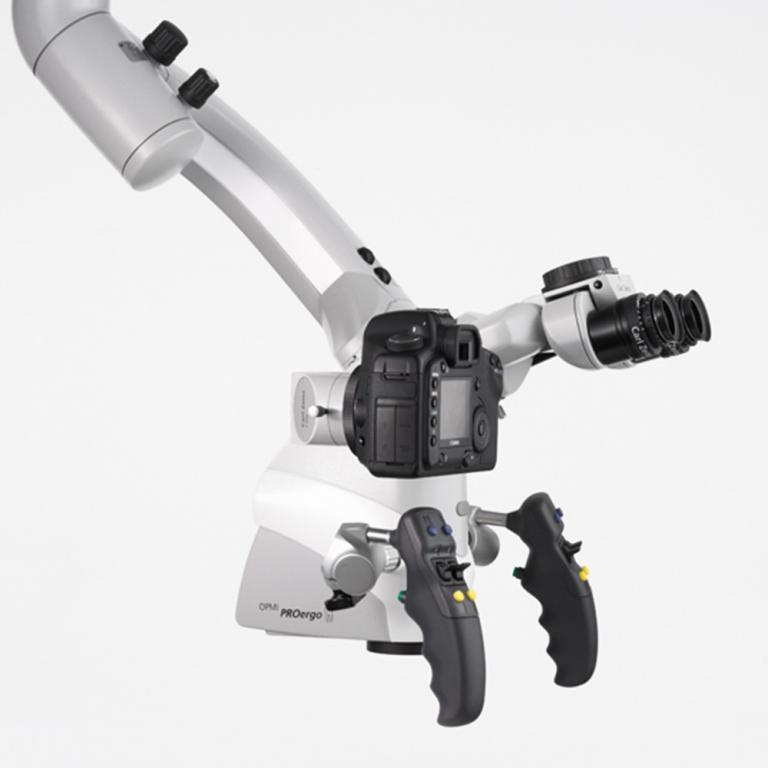

Adapter for SLR cameras

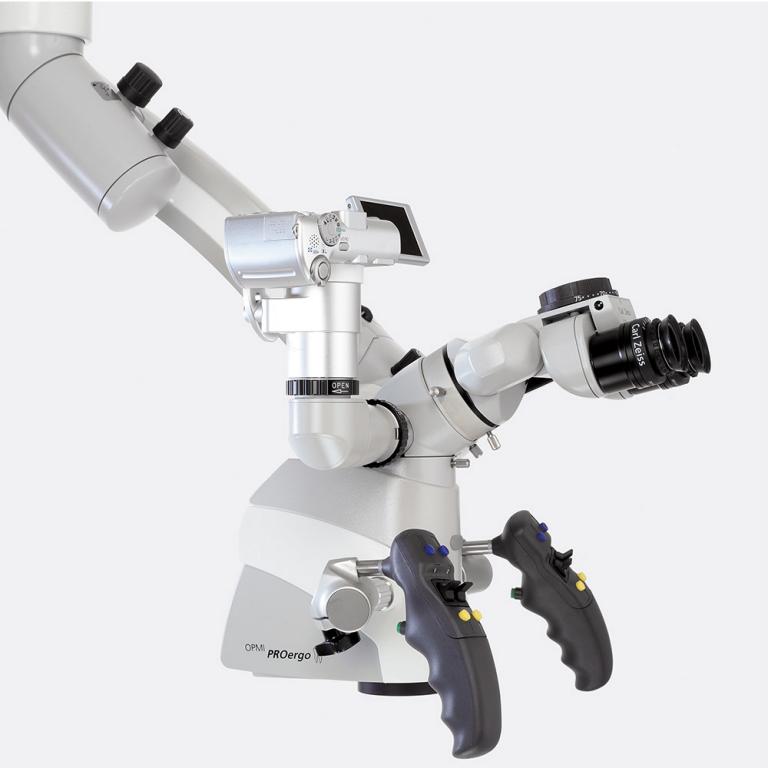

FlexioStill adapter for digital cameras
FlexioMotion adapter for cameras
Videos
Catalog
Features
S7 / OPMI PROergo from ZEISS
| Feature | Explanation | Symbols |
|---|---|---|
| Augmentation System | Motorized zoom system; apochromatic 1:6 ratio; magnification factor Y = 0.4x–2.4x | ★ |
| Focus | Continuous motorized focusing with Varioscope Focusing range 200-415mm SpeedFokus only with video camera | ★ |
| Working Concept | Free Float Magnetic System Multi-function, programmable handles LCD display with user guide Foot control panel for zoom and focus | ★ |
| Tubes | Tiltable tube 0-180° Katlanabilir tüp f170/f260, PROMAG fonksiyonu ile %150 büyütme ve detay büyütmesi | ★ |
| Rear View Lenses | 12.5x wide-field rear view lens; also suitable for eyeglass wearers 10x wide-field rear view lens; also suitable for eyeglass wearers 10x or 12x wide-field eyepieces with reticle; also suitable for eyeglass wearers | ★ |
| Magnification Range | Example with 300mm working distance and 12.5x rear view lenses: Magnification from 2.3x to 14x; Field of view diameter: 75mm to 16mm | ★ |
| Lighting | Halogen lighting with 2 halogen reflector lamps in quick-change module Xenon lighting with daylight characteristics, 2 xenon lamps in quick-change module | ★ |
| Integrated Coaxial Cold Light Illumination | Orange filter and bending illumination diaphragms for composite materials | ★ |
| High Resolution Video | 1Chip HD Camera (1080p), 1/3” CMOS Output: DVI, HD-SDI, S-Video (optional) HD video recorder HD monitors | ★ |
| Accessories | Tube-edge tilted optics optional Dual iris diaphragm to increase depth of field Beam splitter: Oblique optics documentation port, optional tube edge Beam splitter with documentation port Stereo co-viewer | ★ |
| Other Accessories | Foot control panel for zoom and focus Photo adapter for SLR cameras (f = 340 mm) FlexioStill adapter for digital cameras FlexioMotion adapter for digital video cameras Splash guard for objective lens Sterilizable asepsis covers and handle covers Instrument tray on floor stand | ★ |
| Feature | Explanation | Symbols |
|---|---|---|
| Augmentation System | Motorized zoom system; apochromatic 1:6 ratio; magnification factor Y = 0.4x–2.4x | ★ |
| Focus | Continuous motorized focusing with Varioscope Focusing range 200-415mm SpeedFokus only with video camera | ★ |
| Working Concept | Free Float Magnetic System Multi-function, programmable handles LCD display with user guide Foot control panel for zoom and focus | ★ |
| Tubes | Tiltable tube 0-180° Katlanabilir tüp f170/f260, PROMAG fonksiyonu ile %150 büyütme ve detay büyütmesi | ★ |
| Rear View Lenses | 12.5x wide-field rear view lens; also suitable for eyeglass wearers 10x wide-field rear view lens; also suitable for eyeglass wearers 10x or 12x wide-field eyepieces with reticle; also suitable for eyeglass wearers | ★ |
| Magnification Range | Example with 300mm working distance and 12.5x rear view lenses: Magnification from 2.3x to 14x; Field of view diameter: 75mm to 16mm | ★ |
| Lighting | Halogen lighting with 2 halogen reflector lamps in quick-change module Xenon lighting with daylight characteristics, 2 xenon lamps in quick-change module | ★ |
| Integrated Coaxial Cold Light Illumination | Orange filter and bending illumination diaphragms for composite materials | ★ |
| High Resolution Video | 1Chip HD Camera (1080p), 1/3” CMOS Output: DVI, HD-SDI, S-Video (optional) HD video recorder HD monitors | ★ |
| Accessories | Tube-edge tilted optics optional Dual iris diaphragm to increase depth of field Beam splitter: Oblique optics documentation port, optional tube edge Beam splitter with documentation port Stereo co-viewer | ★ |
| Other Accessories | Foot control panel for zoom and focus Photo adapter for SLR cameras (f = 340 mm) FlexioStill adapter for digital cameras FlexioMotion adapter for digital video cameras Splash guard for objective lens Sterilizable asepsis covers and handle covers Instrument tray on floor stand | ★ |

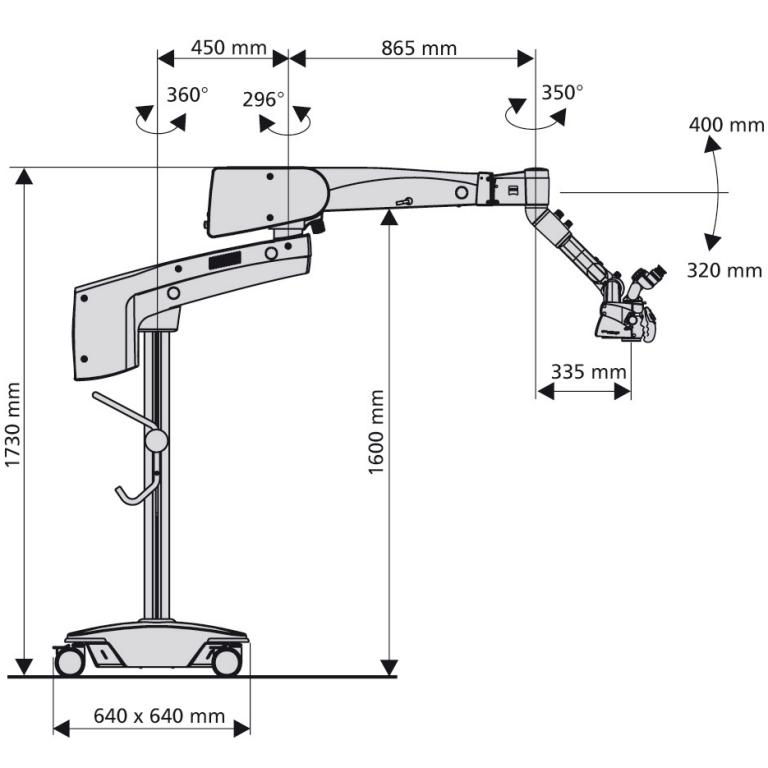

Floor Stand

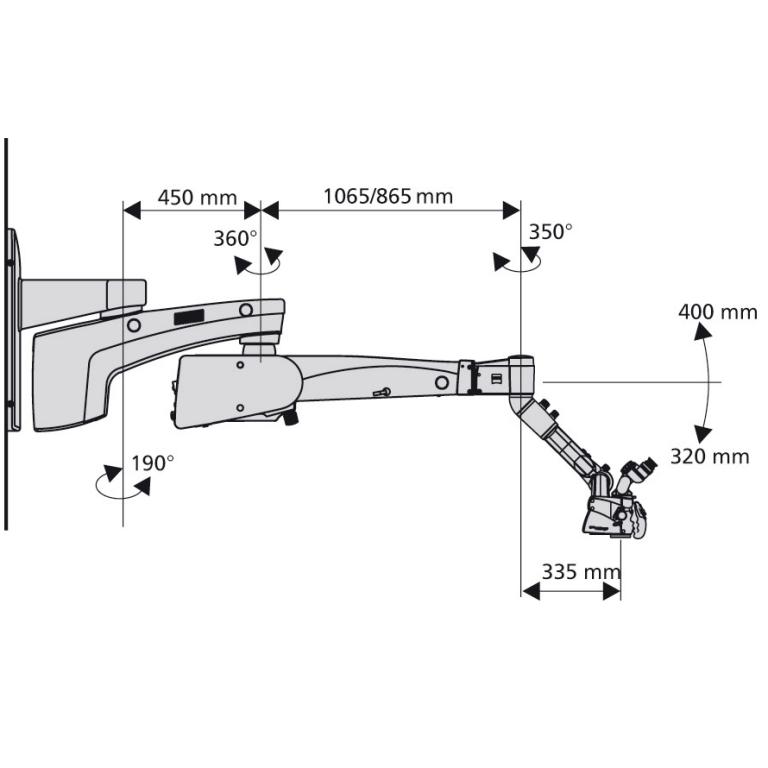

Wall mount (short/long arm)

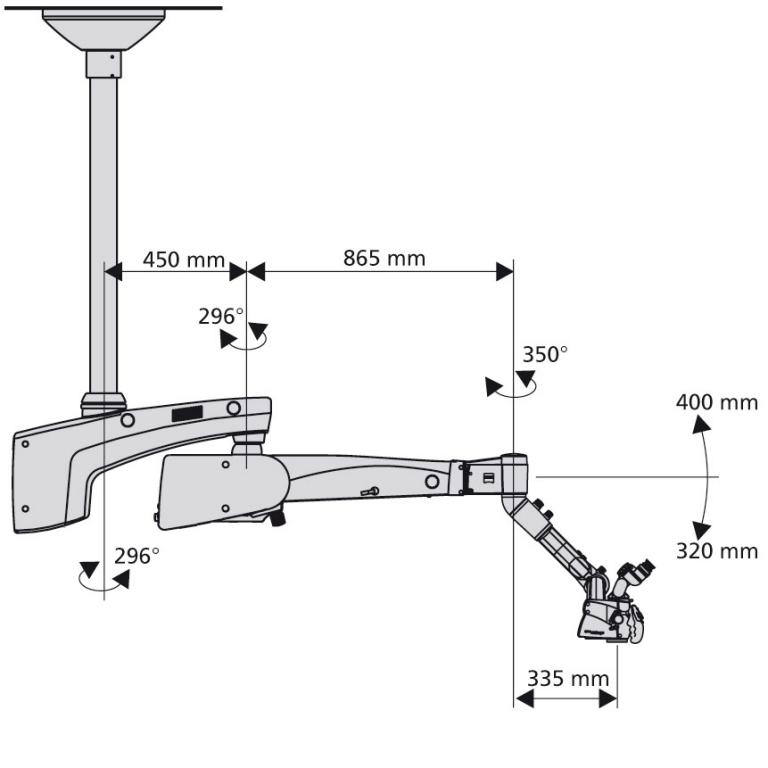

Ceiling Mounting
S7 Centro Mount for KaVo CENTRO suspension system
